Description
Main Features
- Intel Alder Lake-N Processor
- Intel Twin Lake-N Processor
- 1 × Display Port, 1 × HDMI
- 3 × USB 3.0, 2 × USB 2.0, 1 × Type C
- 1 × M.2
- 1 × RS-232 (RJ-45)
- 2 × Marvell AQC113 10 Gigabit LAN
- 4 × Intel I226-V 2.5 Gigabit LAN
Ordering and Specifications Information
Quick Order Model: Q10900H6-S13
| Ordering Code |
Case | Code Name |
Processor Type |
Processor Number |
# of Cores |
# of Threads |
Base Frequency |
Max Turbo Frequency |
Cache | Processor Graphics | TDP |
| Q10911H6 | S13 | Alder lake-N | – | N50 | 2 | – | – | 3.4GHz | 6M | Intel UHD Graphics | 6W |
| Q10921H6 | S13 | Alder lake-N | – | N97 | 4 | – | – | 3.6GHz | 6M | Intel UHD Graphics | 12W |
| Q10922H6 | S13 | Alder lake-N | – | N100 | 4 | 4 | – | 3.4GHz | 6M | Intel UHD Graphics | 6W |
| Q10923H6 | S13 | Alder lake-N | – | N200 | 4 | 4 | – | 3.7GHz | 6M | Intel UHD Graphics | 6W |
| Q10931H6 | S13 | Alder lake-N | Core i3 | N300 | 8 | 8 | – | 3.8GHz | 6M | Intel UHD Graphics | 7W |
| Q10932H6 | S13 | Alder lake-N | Core i3 | N305 | 8 | 8 | – | 3.8GHz | 6M | Intel UHD Graphics | 15W |
| Q11022H6 | S13 | Twin Lake-N | – | N150 | 4 | 4 | – | 3.6GHz | 6M | Intel Graphics | 6W |
| Q11023H6 | S13 | Twin Lake-N | – | N250 | 4 | 4 | – | 3.8GHz | 6M | Intel Graphics | 6W |
| Q11031H6 | S13 | Twin Lake-N | Core i3 | N350 | 8 | 8 | – | 3.9GHz | 6M | Intel Graphics | 7W |
| Q11032H6 | S13 | Twin Lake-N | Core i3 | N355 | 8 | 8 | – | 3.9GHz | 6M | Intel Graphics | 15W |
Specification
| Processor System | |
| CPU | Intel Alder Lake-N Processor Intel Twin Lake-N Processor |
| CPU TDP | By CPU |
| Memory | 1 × DDR5 SO-DIMM Socket (Up to 48G) |
| Chipset | By CPU |
| Graphics | By CPU |
| LAN Chipset | 2 × Marvell AQC113 10 Gigabit LAN 4 × Intel I226-V 2.5 Gigabit LAN |
| Watch Dog | Yes |

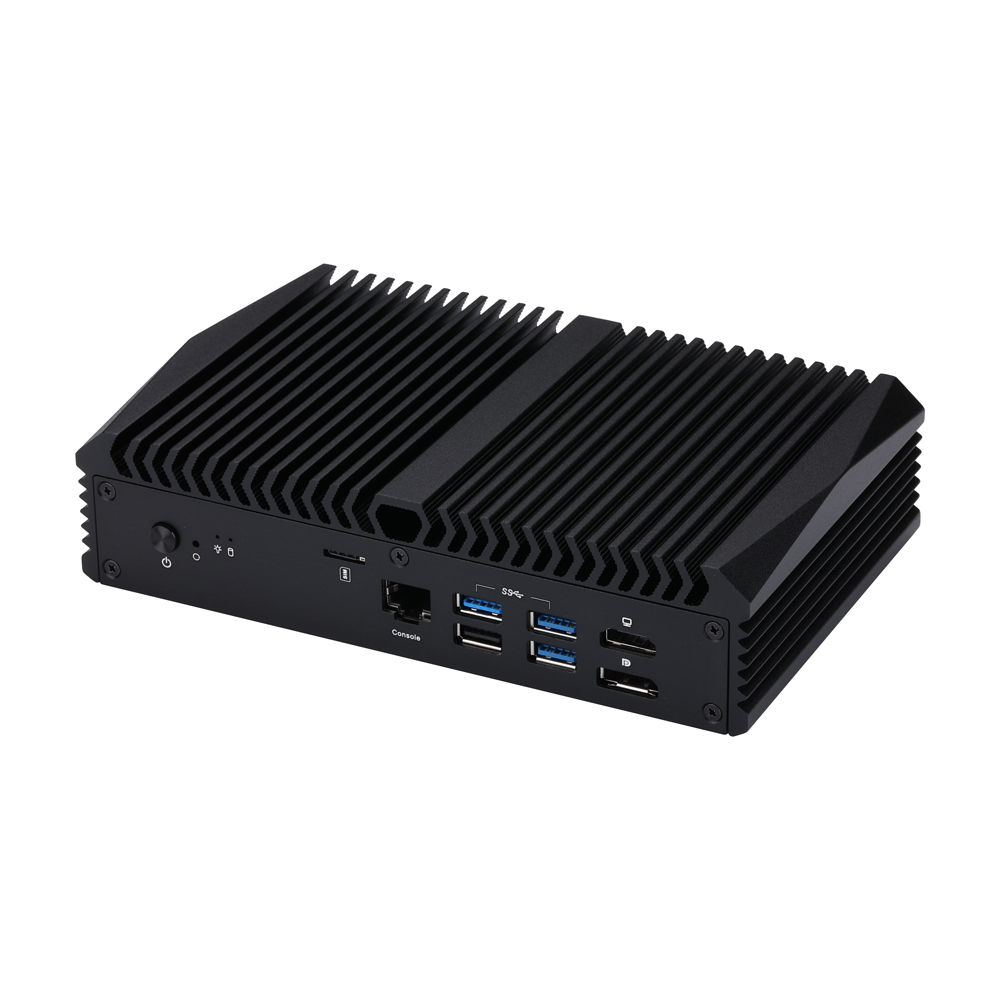

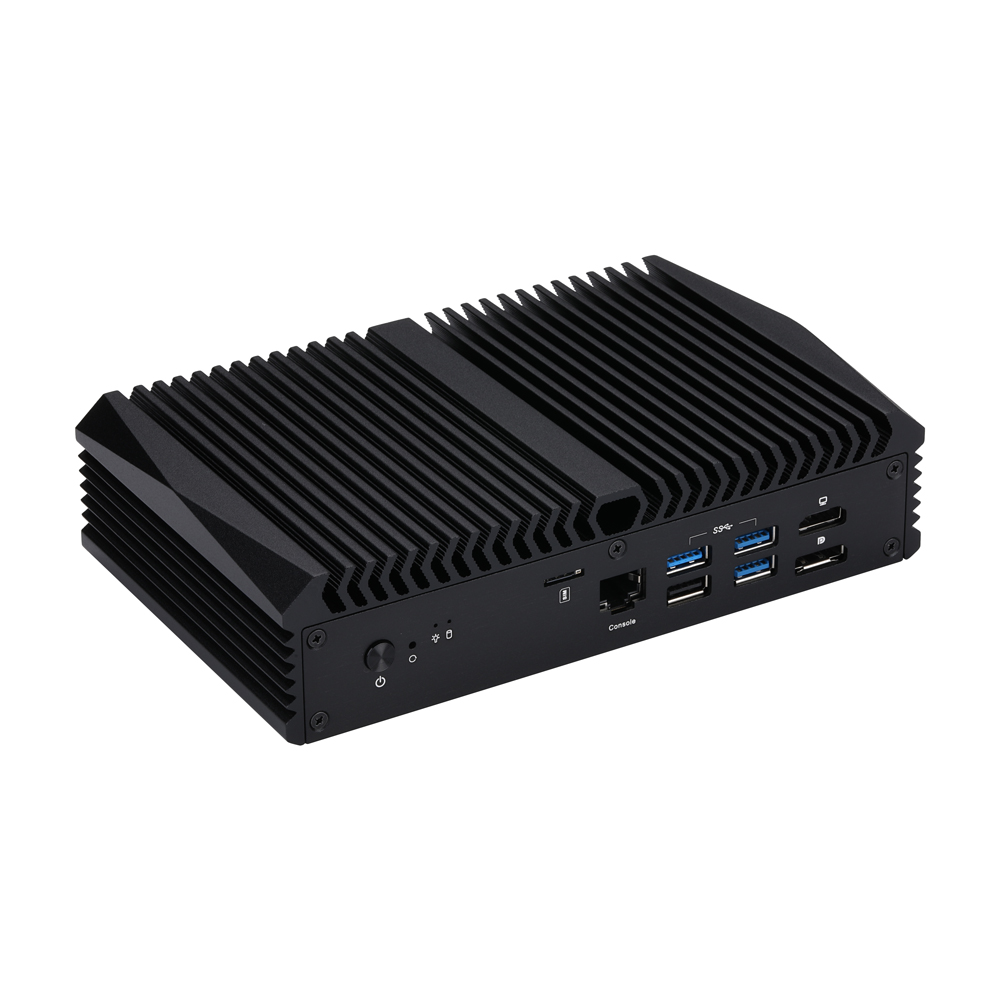

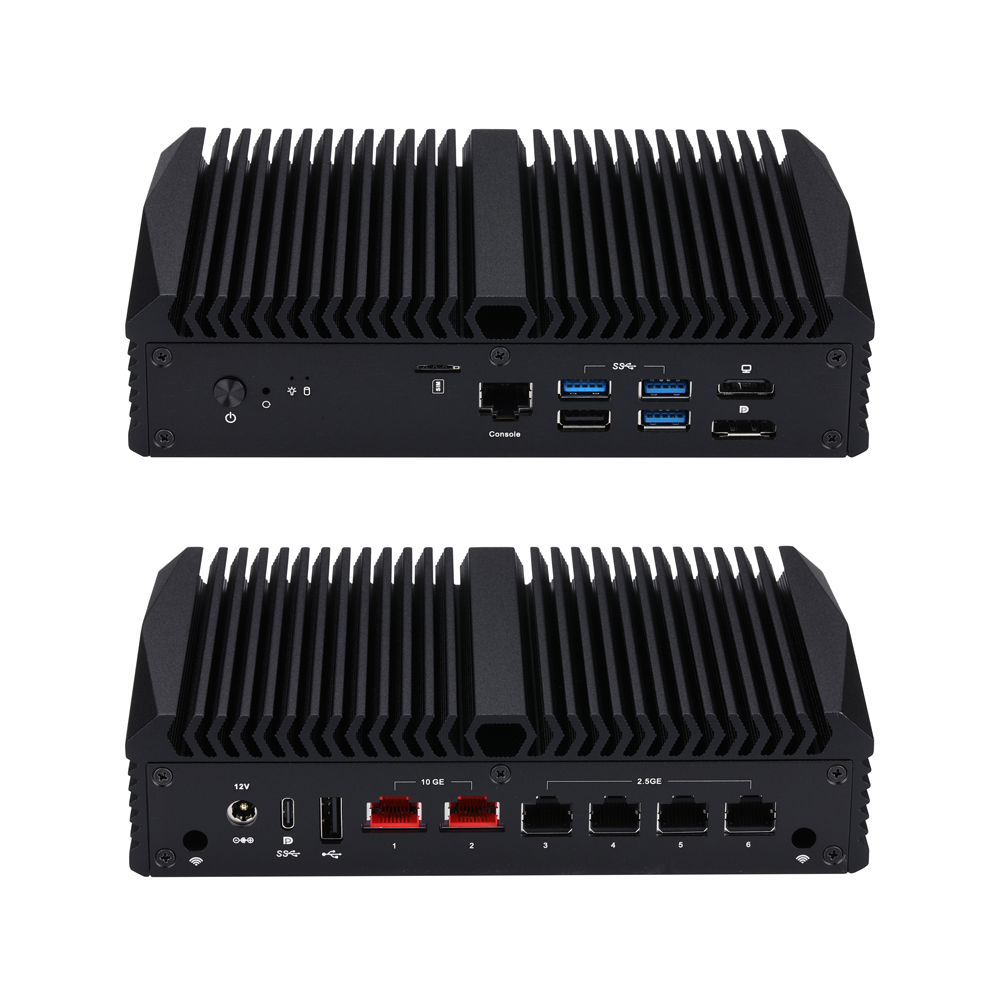

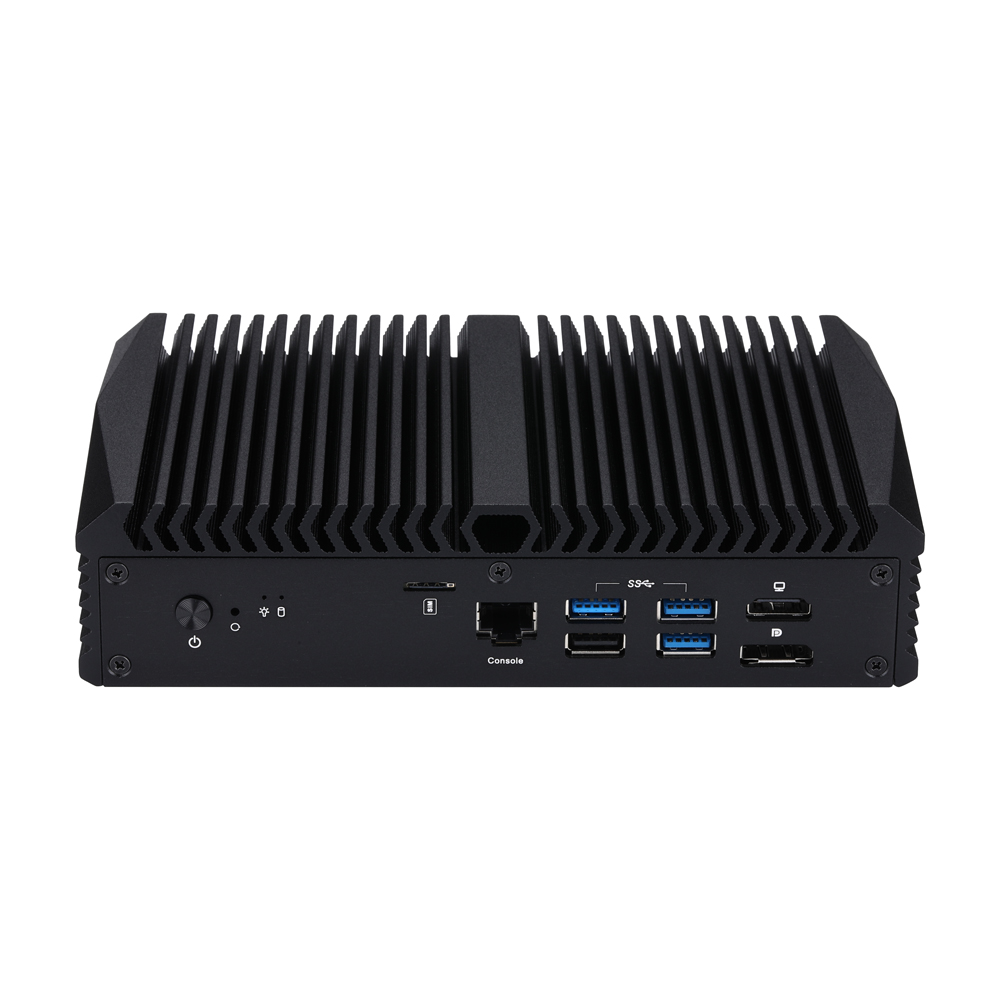

| Front I/O | |
| Power Button | 1 × Power Button, 1 × Reset Button |
| LED | 1 × Power LED, 1 × HDD LED |
| SIM Slot | 1 × Nano SIM Slot |
| Serial Port | 1 × RS-232 Port (RJ-45) |
| Video Output | 1 × HDMI, 1 × Display Port |
| USB | 3 × USB 3.0, 1 × USB 2.0 |

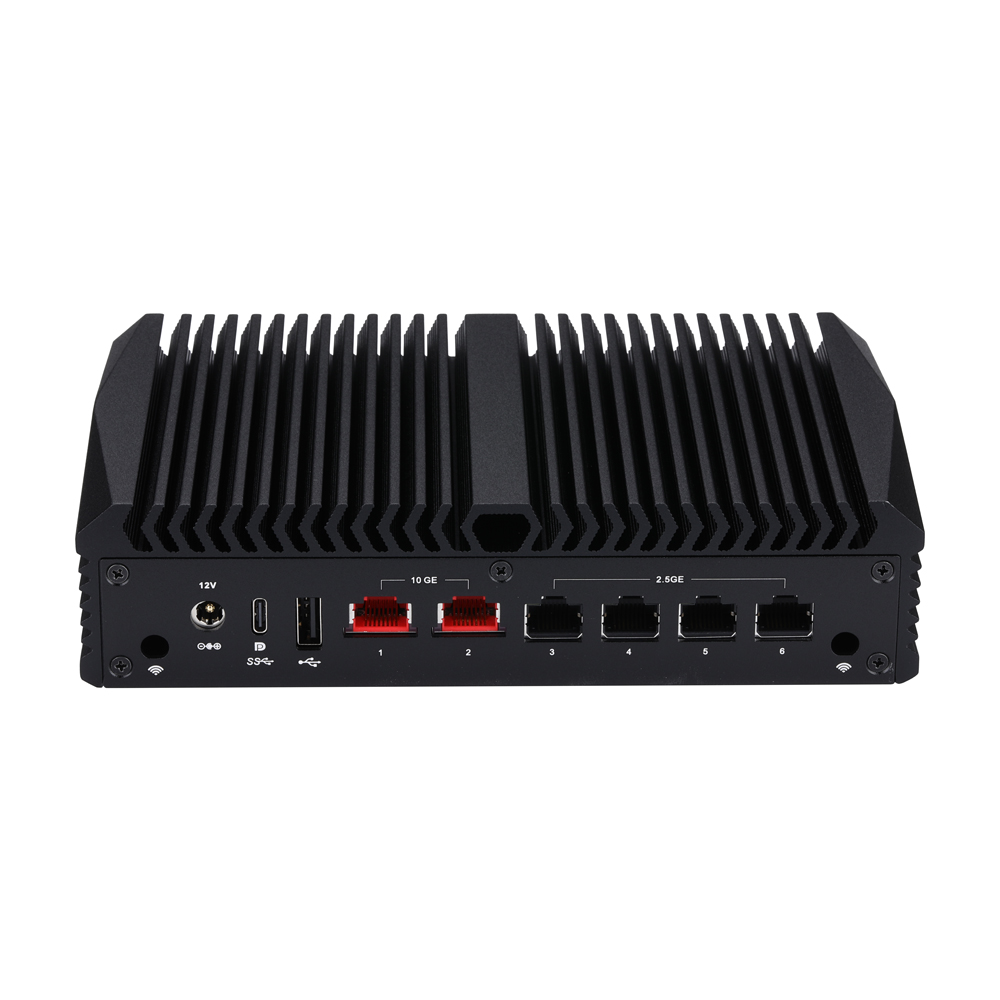

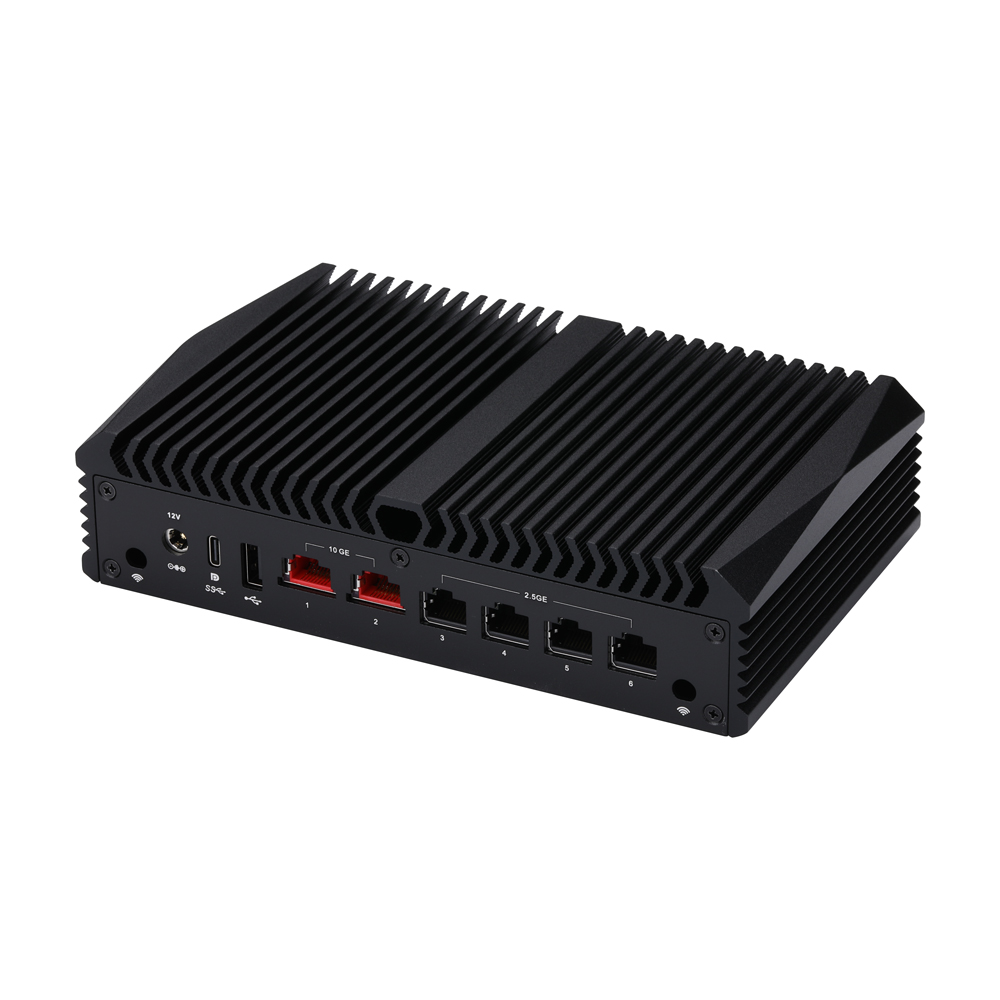

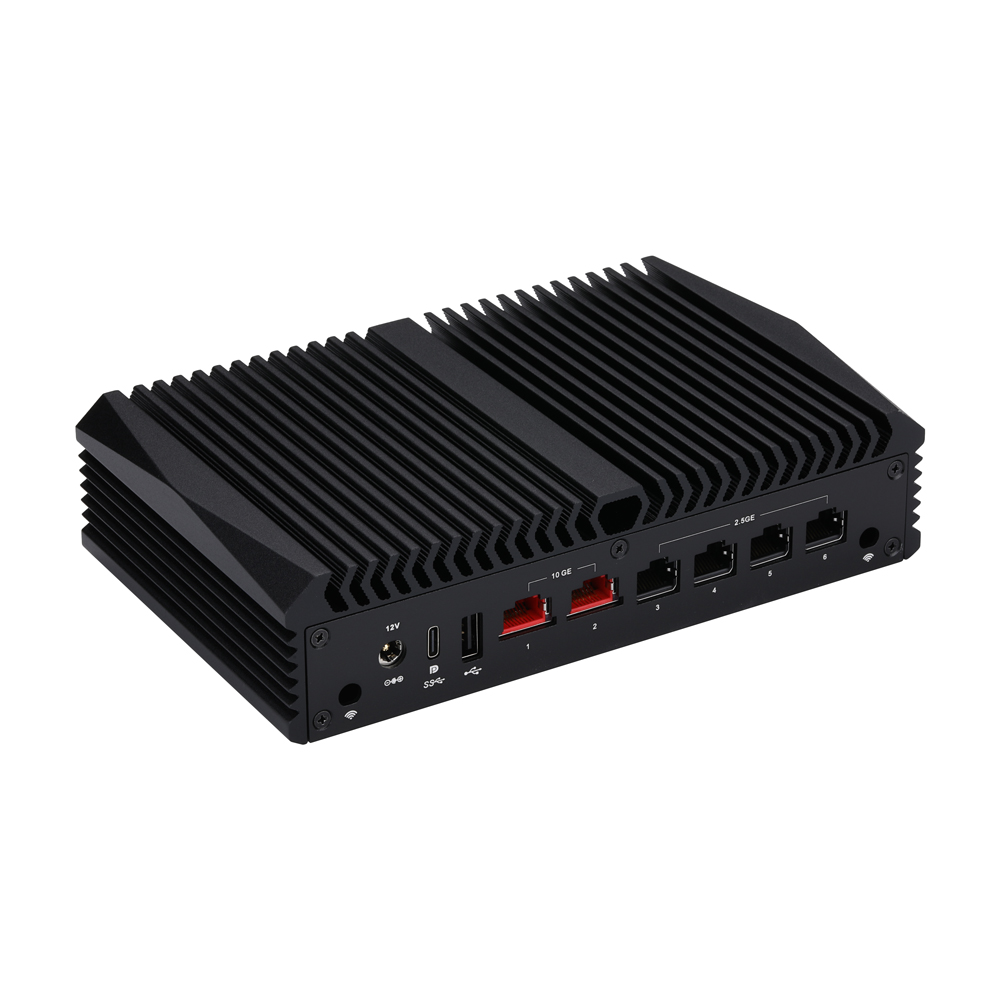

| Rear I/O | |
| Power | 1 × DC Jack |
| USB | 1 × USB 2.0 |
| Type C | 1 × Type C (USB 3.0, Display Port) |
| LAN | 2 × Marvell AQC113 10 Gigabit LAN 4 × Intel I226-V 2.5 Gigabit LAN |
| Storage | |
| Type | 1 × M.2 for SSD (M key, Type: 2280, PCIe 3.0 × 1) |
| Expansion | |
| eMMC | No |
| M.2 | 1 × M.2 for 4G/5G (B key, Type: 3042/3052) |
| M.2 | Wi-Fi support via a Converter Card (Option) |
| SIM Card Slot | 1 |
| AutoStart Jumper | Yes, 1 × 3Pin, Pitch 2.54mm |
| CMOS Clear Jumper | Yes, 1 × 3Pin, Pitch 2.0mm |
| GPIO | 1, 2 × 5Pin, Pitch 2.0mm |
| Power Header | 1, 1 × 2Pin, Pitch 3.5mm, Phoenix 2Pin |
| Power Requirement | |
| Power Adapter | 12V5A |
| DC Jack | 5.5mm, 2.5mm |
| Environmental | |
| Operating Temp | 0°C~50°C |
| Non-Operating Temp | -20°C~80°C |
| Humidity | 10%~90% |
| Mechanical | |
| Material | Aluminium Alloy |
| Dimension | 196 × 122 × 47mm |
| Weight | 1.23kg |
| Mounting | VESA Mounting Bracket |
| Packaging Dimension | 285 × 260 × 93mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| OS Support | |
| OS | UEFI Windows, UEFI Linux, Unix-incompatible |
| Drivers | Visit |
| Bios | Visit |
Instructions before purchase
- Import Duties & VAT & other fees (If Any) should by paid by buyer.
- Shipping way: DHL, UPS, FedEx
- Place of dispatch: Shenzhen, China
- Product contain Qotom Logos by default (on Computer case, Boot up screen, product label).
If you need to add your LOGO or don’t need the Qotom logo, pls contact me within 2 hours after placing the order.
- Preinstall Ubuntu by default (except barebone device).
- Pre-set up the function of automatic start after power connected.
- If you require an Invoice (PDF file) or have other questions, pls email to moding@qotom.com
